ProX XTH-MLT3KIT5FTFD | 5ft Pre-Rig Truss + Folding Dolly | Compact Open-Bottom Rigging System

ProX XTH-MLT3KIT5FTFD  (ProX XTHMLT3KIT5FTFD)

Pre-Rig Truss and Folding Dolly Kit

The ProX XTH-MLT3KIT5FTFD combines a 5-foot HOF MLT THREE pre-rig truss with its matching folding dolly for professional touring, rental, staging, lighting, and LED video applications. The shorter section provides the same open-bottom MLT THREE design in a more compact format that is useful for tight configurations, gap filling, precise video wall layouts, and mixed-length truss systems.

ProX XTH-MLT3KIT5FTFD Competitive Differences

• Complete matched system includes a 5-foot MLT THREE pre-rig truss with male and female steel rotatable fork connectors plus its purpose-built folding dolly.
• Compact 5-foot length provides greater flexibility for tight overhead layouts, gap filling, and precise LED video wall coverage.
• Open-bottom truss design provides unobstructed access for installing moving lights, LED fixtures, complete video modules, and hanging frames.
• Telescopic dolly legs, heavy-duty casters, and folding stackable construction support efficient transport and storage of pre-rigged systems.

ProX XTH-MLT3KIT5FTFD Description

The ProX XTH-MLT3KIT5FTFD is designed for production companies and rental operations that need the capabilities of the HOF MLT THREE system in a shorter, more maneuverable section. Its 5-foot length is well suited for filling gaps between longer truss sections, building compact configurations, and matching LED video layouts where a longer section would not provide the required fit.

The truss is manufactured from EN AW 6082 T6 aluminum with 48.3 x 4.5 mm main tubes and 30 x 3 mm bracing. Its open-bottom construction eliminates a closed lower head frame, giving technicians direct access for mounting moving lights, LED fixtures, video modules, and hanging frames. HOF Heavy Duty coating in RAL 9005 gloss black provides a durable finish for repeated handling in touring and rental environments.

Included hardened-steel male and female fork connectors rotate for straight, angled, curved, and circular configurations and extend up to approximately 60 mm. The Unique Fork-Locking System™ allows selected connector angles to be secured and can also support pre-tension or camber configurations to help compensate for deflection under installed equipment loads. Individual fork connectors are replaceable if damaged or worn.

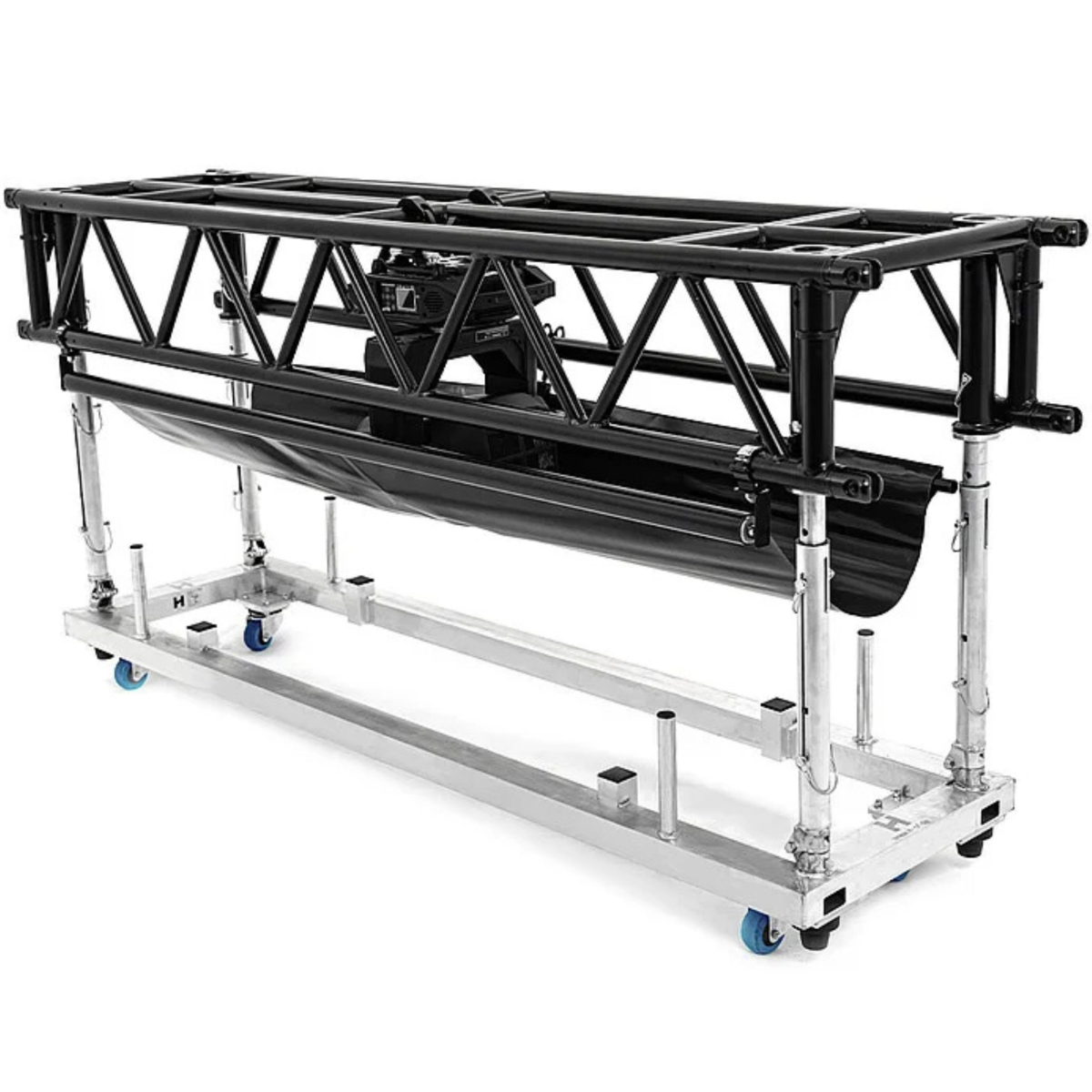

The matching folding dolly is purpose-built for the 5-foot MLT THREE truss and uses EN AW 6082 T6 aluminum construction. Telescopic adjustable legs provide clearance for complete video modules and hanging frames, while the open-bottom dolly structure allows technicians to access installed equipment while the truss remains at ground level. Heavy-duty casters provide mobility, and the dolly folds and stacks for more efficient truck and warehouse storage.

XTH-MLT3KIT5FTFD Features

• Complete 5-foot HOF MLT THREE pre-rig truss and folding dolly kit
• Compact 5-foot truss length for tight configurations and mixed-length builds
• Open-bottom truss design with no closed lower head frame
• Direct access for moving lights, LED fixtures, video modules, and hanging frames
• Suitable for touring, rental, staging, concert, and LED video wall applications
• Hardened-steel male and female rotatable fork connectors included
• Truss fork connectors extend up to approximately 60 mm
• Supports straight, angled, horizontal-curve, vertical-curve, and circular configurations
• Unique Fork-Locking System™ for securing selected connector angles
• Supports pre-tension or camber configurations to help compensate for loaded deflection
• Individually field-replaceable truss fork connectors
• EN AW 6082 T6 aluminum truss construction
• HOF Heavy Duty coating in RAL 9005 gloss black
• Purpose-built folding dolly constructed from EN AW 6082 T6 aluminum
• Telescopic adjustable dolly legs accommodate video modules and hanging frames
• Upper locking pins secure extended dolly leg positions
• Open-bottom dolly design provides access to installed equipment at ground level
• Dolly steel rotatable fork connectors extend up to approximately 70 mm
• Replaceable dolly fork connectors
• Heavy-duty casters for venue and production transport
• Hinged adjustable legs support single-person truss connection
• Dolly folds for compact transport and storage
• Stacks up to 10 dollies without truss
• Compatible with the MLT THREE accessory range

XTH-MLT3KIT5FTFD Specifications

• Truss Length: 5 ft (1524 mm)
• Truss Material: EN AW 6082 T6 aluminum
• Main Tube: 48.3 x 4.5 mm (1.90 x 0.18 in)
• Bracing: 30 x 3 mm (1.18 x 0.12 in)
• Truss Connector Type: Rotatable hardened-steel male and female fork connectors
• Truss Fork Extension: Up to approximately 60 mm (2.36 in)
• Truss Finish: HOF Heavy Duty coating, RAL 9005 gloss black
• Dolly Material: EN AW 6082 T6 aluminum
• Dolly Leg Type: Telescopic adjustable
• Dolly Fork Extension: Up to approximately 70 mm (2.76 in)
• Dolly Stacking Capacity: Up to 10 units without truss
• Suggested Shipping Method: LTL

What's In The Box

• (1) HOF MLT THREE 5-Foot Pre-Rig Truss
• Male and Female Rotatable Steel Fork Connectors
• (1) HOF MLT THREE 5-Foot Folding Dolly
