ProX XTH-MLT3US5FT | 5ft Open-Bottom Pre-Rig Truss | Rotatable Steel Fork Connectors

ProX XTH-MLT3US5FT  (ProX XTHMLT3US5FT)

Pre-Rig Truss

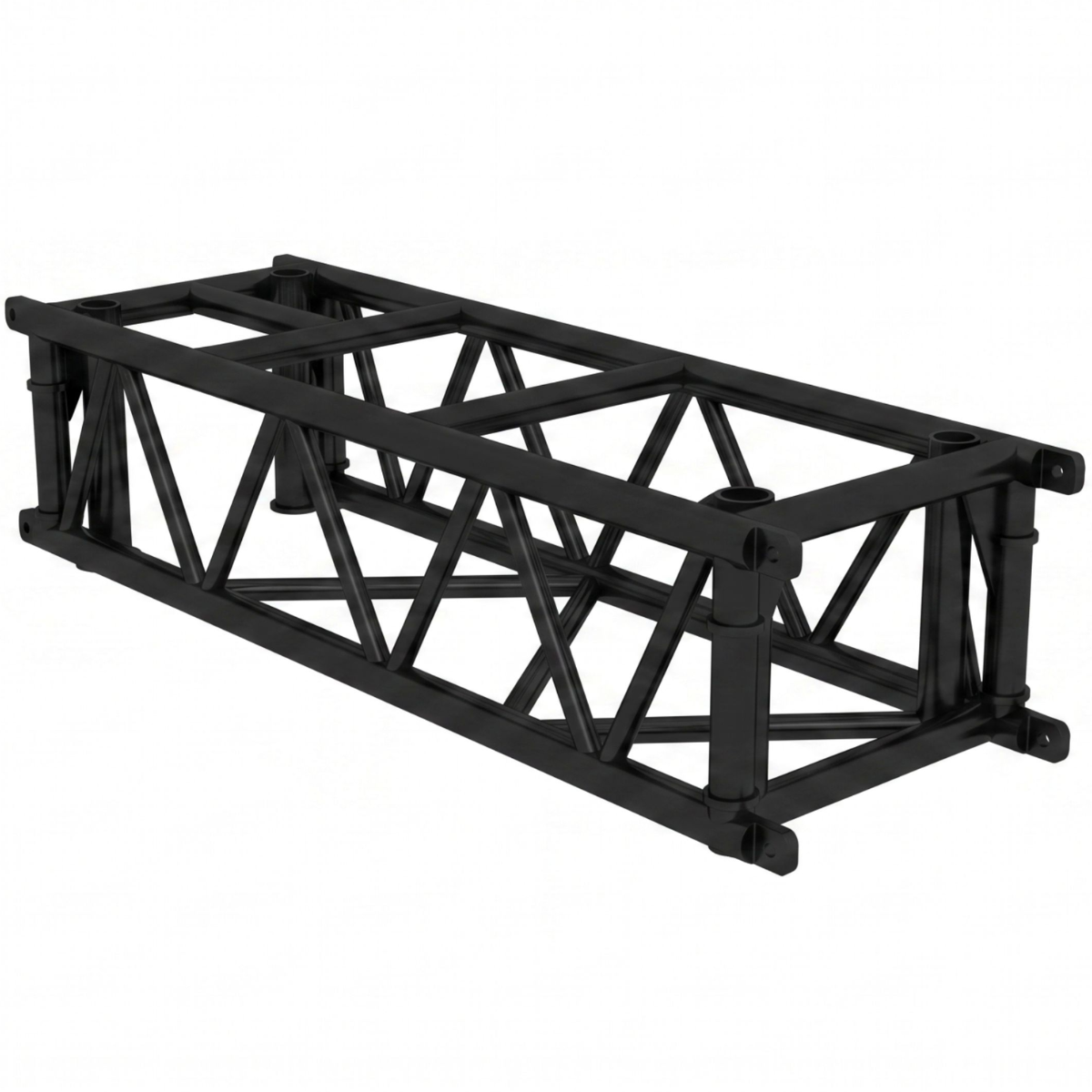

The ProX XTH-MLT3US5FT MLT THREE is a compact 5-foot pre-rig truss designed for touring productions, rental companies, LED video systems, concert stages, and professional event applications. Its open-bottom construction provides unobstructed access for installing moving lights, LED fixtures, and video modules while the shorter section length is useful for tight layouts, gap filling, and mixed-length truss configurations.

ProX XTH-MLT3US5FT Competitive Differences

• Compact 5-foot section provides additional flexibility for tight overhead configurations, gap filling, and precise LED video layouts.
• Open-bottom design eliminates a closed lower head frame for easier access to lighting fixtures, video modules, and hanging frames.
• Rotatable hardened-steel fork connectors support straight, angled, curved, and circular configurations and are individually replaceable.
• Unique Fork-Locking System™ allows selected connector positions to be secured and supports pre-tension or camber configurations for loaded systems.

ProX XTH-MLT3US5FT Description

The ProX XTH-MLT3US5FT brings the professional MLT THREE pre-rig platform into a shorter section for applications where an 8-foot or 10-foot truss would be too long. It can be used as part of mixed-length systems, to complete tighter overhead layouts, or to provide more precise coverage for lighting and LED video installations.

The truss is manufactured from EN AW 6082 T6 aluminum with 48.3 x 4.5 mm main tubes and 30 x 3 mm bracing. HOF Heavy Duty coating in RAL 9005 gloss black provides a durable finish suited to the repeated handling associated with touring, rental, and staging operations.

Included male and female hardened-steel fork connectors rotate to accommodate straight runs as well as horizontal and vertical curves. The Fork-Locking System™ allows crews to establish and retain selected connector positions for specialized shapes and circular configurations. It can also be used to establish pre-tension or camber before deployment to help compensate for deflection in loaded LED video applications.

The open-bottom structure allows complete video modules and hanging frames to be positioned inside the truss with unobstructed access. A compatible folding dolly with telescopic legs is available separately for transporting pre-rigged assemblies, while an optional rail system provides additional fixture-positioning flexibility. This listing includes the 5-foot truss section and male and female steel fork connectors only.

XTH-MLT3US5FT Features

• Compact 5-foot HOF MLT THREE pre-rig truss
• Open-bottom design with no closed lower head frame
• Direct access for moving lights, LED fixtures, video modules, and hanging frames
• Designed for touring, rental, staging, concert, and LED video applications
• Useful for gap filling, tight configurations, and mixed-length truss systems
• Hardened-steel male and female rotatable fork connectors included
• Fork connectors extend up to approximately 60 mm
• Supports straight, angled, horizontal-curve, vertical-curve, and circular configurations
• Unique Fork-Locking System™ secures selected connector positions
• Supports pre-tension or camber configurations to help compensate for loaded deflection
• Individually field-replaceable fork connectors
• EN AW 6082 T6 aluminum construction
• 48.3 x 4.5 mm main tubes
• 30 x 3 mm bracing
• HOF Heavy Duty coating in RAL 9005 gloss black
• Compatible within the HOF MLT TWO and MLT THREE system
• Optional rail system available separately
• Compatible folding dolly with telescopic legs available separately
• Structural analysis documentation available for multiple MLT THREE configurations
• Dolly, telescopic dolly legs, and optional rail system sold separately

XTH-MLT3US5FT Specifications

• Nominal Truss Length: 5 ft
• Material: EN AW 6082 T6 aluminum
• Main Tube: 48.3 x 4.5 mm (1.90 x 0.18 in)
• Bracing: 30 x 3 mm (1.18 x 0.12 in)
• Connector Type: Rotatable hardened-steel male and female fork connectors
• Fork Extension: Up to approximately 60 mm (2.36 in)
• Finish: HOF Heavy Duty coating
• Color: RAL 9005 gloss black
• Suggested Shipping Method: LTL

What's In The Box

• (1) HOF MLT THREE 5-Foot Pre-Rig Truss Section
• Male and Female Rotatable Steel Fork Connectors
